CANBUS module M57

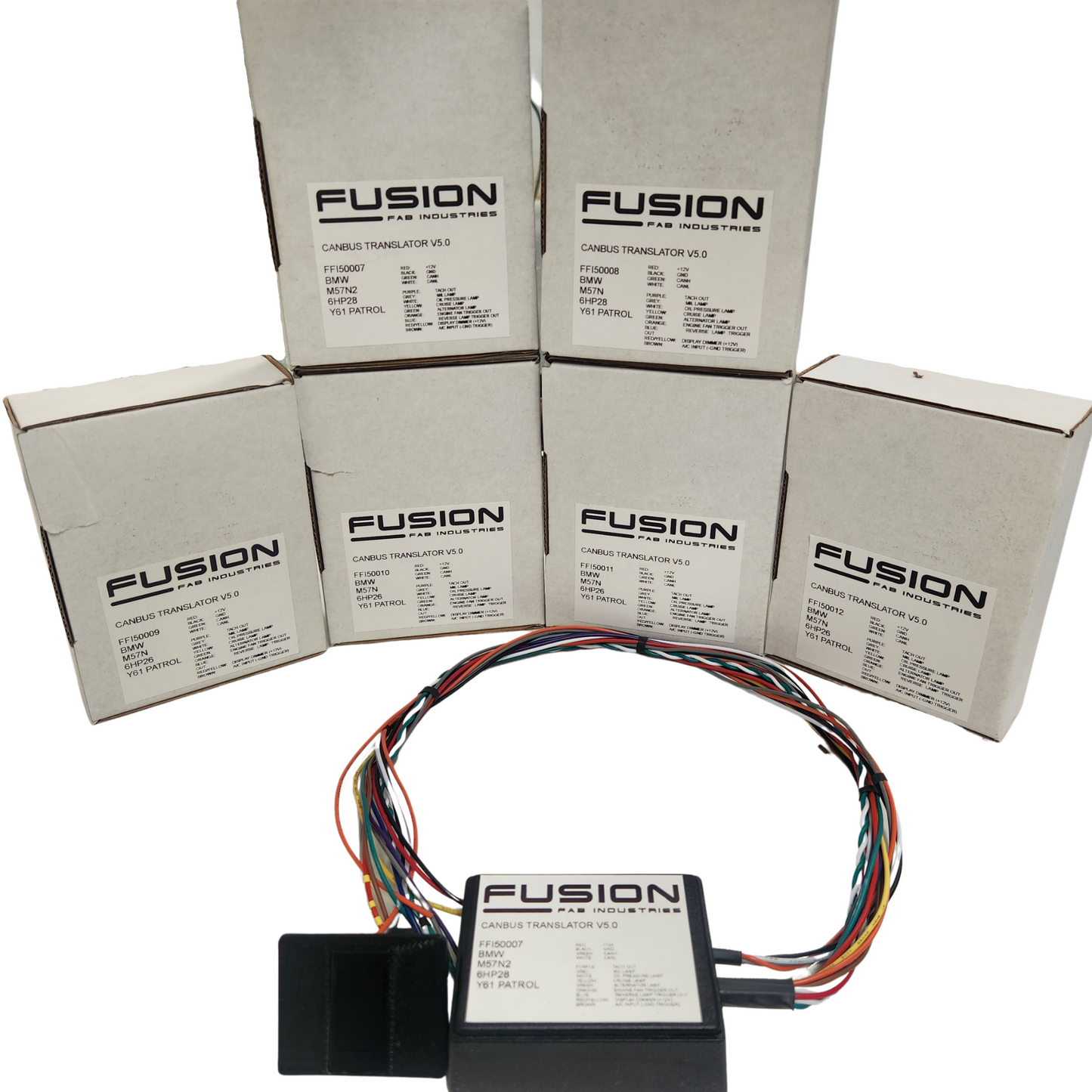

BMW M57 CANBUS INTEGRATION MODULE by CAN Solutions Australia

Introducing the latest in complete M57 engine conversion integration.

This CANBUS module will allow for seamless connectivity between BMW M57 and Nissan Patrol or Toyota Landcruiser and more..

Functions include:

- Tachometer - (both analogue and CANBUS) with ZD30 tacho correction.
- MIL lamp - check engine lamp (needed to engineering and RWC)
- Oil pressure lamp (if applicable)
- Alternator lamp (if applicable)
- Engine cooling fan trigger output - use this when wanting to trigger thermo fans (default temperature set, ready to use)
- Reverse lamp trigger output - use this to activate reverse light relay (BMW ZF's do not have a reverse lamp output)
- A/C input - used to trigger A/C via CAN for CRD Patrol

With the installation of this module, there is no need to keep the Nissan ECU installed.

Upon purchase, we will be in contact with an order form, you will need to return the completed form to us for your order to be confirmed.

This item is made to order.
Please allow 5-8 business days from order confirmation
